LD SERIES TRANSFORMER DISCONNECT PART NUMBERS: STANDARD VOLTAGES 460V - 115V

	APPROXIMATE DIMENSIONS IN INCHES(MM)
P/N	VA	H	W	D	MW	MD	F1	F2	F3
LD250	250	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	1A	1A	2A
LD500	500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	2A	2A	2A
LD750	750	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	4A	2A	4A
LD1000	1000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	5A	2A	8A
LD1500	1500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	7A	5A	8A
LD2000	2000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	10A	10A	8A
LD3000	3000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	15A	10A	15A
LD5000	5000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	20A	25A	15A
LD7500	7500	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	40A	45A	15A
LD10000	10000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	50A	65A	15A

LD250-LR	250	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	1A	2A	-
LD500-LR	500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	2A	4A	-
LD750-LR	750	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	4A	6A	-
LD1000-LR	1000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	5A	8A	-
LD1500-LR	1500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	7A	12A	-
LD2000-LR	2000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	10A	15A	-
LD3000-LR	3000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	15A	25A	-
LD5000-LR	5000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	20A	40A	-
LD7500-LR	7500	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	40A	65A	-
LD10000-LR	10000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	50A	80A	-

LD250-200K	250	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	1A	1A	2A
LD500-200K	500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	2A	2A	2A
LD750-200K	750	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	4A	2A	4A
LD1000-200K	1000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	5A	2A	8A
LD1500-200K	1500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	7A	5A	8A
LD2000-200K	2000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	10A	10A	8A
LD3000-200K	3000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	15A	10A	15A
LD5000-200K	5000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	20A	25A	15A
LD7500-200K	7500	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	40A	45A	15A
LD10000-200K	10000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	50A	65A	15A

LD250-LR-200K	250	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	1A	2A	-
LD500-LR-200K	500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	2A	4A	-
LD750-LR-200K	750	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	4A	6A	-
LD1000-LR-200K	1000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	5A	8A	-
LD1500-LR-200K	1500	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	7A	12A	-
LD2000-LR-200K	2000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	10A	15A	-
LD3000-LR-200K	3000	8.50(216)	14.75(375)	7.75(197)	13.75(349)	6.00(152)	15A	25A	-
LD5000-LR-200K	5000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	20A	40A	-
LD7500-LR-200K	7500	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	40A	65A	-
LD10000-LR-200K	10000	9.50(241)	19.75(502)	9.50(241)	18.75(476)	7.50(191)	50A	80A	-

Schematic Standard w/Grounded
Secondary with Receptacle

Schematic Standard w/Grounded
Secondary without Receptacle

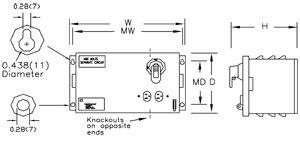

DIMENSIONS:
