Transformer Disconnect

MN Series Image
GN Series Drawing


DETAILS:

• NEMA 12 Enclosure
• AC powered source for electrical enclosures
• Power on pilot light is standard
• Typically wired to line side of main disconnecting device to provide power
   when main disconnect is in OFF position
• Convenience outlet is provided
• Primary and secondary fuses provided
• Base or side mounted
• Standard transformer comes with grounded secondary
• Standard disconnect comes with 5kA Short Circuit Current Rating (SCCR) Switch
• 200kA SCCR Switches Available
• Special voltages available
• All dimensions are in inches(mm)
• UL and C-UL Listed

AVAILABLE OPTIONS: SUFFIX

• 200kA Short Circuit Current Rating Switch (SCCR)
• 65kA Short Circuit Current Rating Switch (SCCR)
• Circuit Breaker
• Disconnect with no Receptacle
• Disconnect with Orange Wire
• Disconnect with Yellow Wire
• GFCI Receptacle
• Transformer w/Ungrounded Secondary
• Special Voltages
- 200K
- 65K
- CB
- LR
R
Y
- GFCI
- US
Reference Page
Schematic
Schematic Standard w/Grounded
Secondary with Receptacle

Schematic
Schematic Standard w/Grounded
Secondary without Receptacle

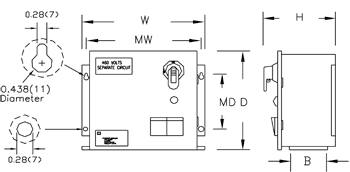

APPROXIMATE DIMENSIONS IN INCHES(MM)

P/N
VA
H
W
D
MW
MD
B
F1
F2
F3
GN1000
1000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
2A
8A
GN1500
1500
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
7A
5A
8A
GN2000
2000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
10A
8A
GN3000
3000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
10A
15A
GN5000
5000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
25A
15A
GN10000
10000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
50A
65A
15A
GN1000-LR
1000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
8A
-
GN1500-LR
1500
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
7A
12A
-
GN2000-LR
2000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
15A
-
GN3000-LR 3000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
25A
-
GN5000-LR 5000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
40A
-
GN10000-LR 10000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
50A
80A
-
GN1000-65K
1000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
2A
8A
GN1500-65K
1500
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
7A
5A
8A
GN2000-65K
2000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
10A
8A
GN3000-65K 3000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
10A
15A
GN5000-65K 5000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
25A
15A
GN10000-65K 10000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
50A
65A
15A
GN1000-LR-65K
1000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
8A
-
GN1500-LR-65K
1500
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
7A
12A
-
GN2000-LR-65K
2000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
15A
-
GN3000-LR-65K 3000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
25A
-
GN5000-LR-65K 5000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
40A
-
GN10000-LR-65K 10000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
50A
80A
-
GN1000-200K 1000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
2A
8A
GN1500-200K 1500
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
7A
5A
8A
GN2000-200K 2000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
10A
8A
GN3000-200K 3000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
10A
15A
GN5000-200K 5000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
25A
15A
GN10000-200K 10000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
50A
65A
15A
GN1000-LR-200K
1000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
8A
-
GN1500-LR-200K
1500
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
7A
12A
-
GN2000-LR-200K
2000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
15A
-
GN3000-LR-200K
3000
9.13(232)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
25A
-
GN5000-LR-200K
5000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
40A
-
GN10000-LR-200K
10000
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
50A
80A
-
