  TRANSFORMERS:

A Series Printable View
Reference Page
Back to Transformers

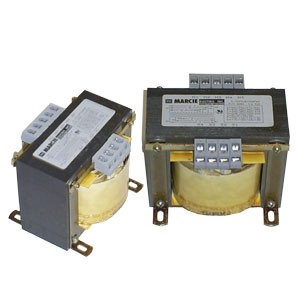

A SERIES OPEN CONTROL TRANSFORMERS
A Series Transformer
DETAILS:
  • 100% Copper windings
• 100% Tested transformers
• Special voltages available
• Frequency 50/60 Hertz
• Saddle clamp terminals are finger safe and provide ease in assembly
• Machine tool isolation transformers feature low temperature rise, along with special regulations required to meet high in-rush current
requirements.

C RU

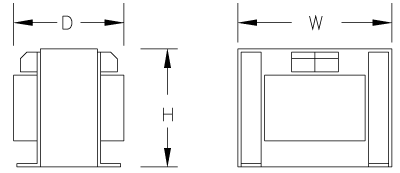

A-Series Dimensions

Fig 1
FIG. 1

Fig 2
FIG. 2

Fig 3
FIG. 3
Fig 4
FIG. 4

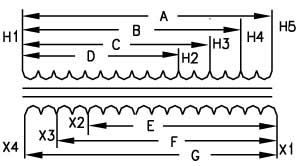

Fig 5
FIG. 5
  A= 500/550/575/600
B= 400/440/460/480
C= 345/380/400/416
D= 208/220/230/240
E=  85/91/95/99
F= 100/110/115/120
G= 110/120/125/130
APPROXIMATE DIMENSIONS IN INCHES(MM)

FIG 1
FIG 2
FIG 3
FIG 4
FIG 5
VA
H
W
D
PRI:
230/460V
115V
480/575V
115V
380V
115V
480V
240V
MULTI
MULTI
SEC:
250
3.75(95)
4.50(114)
4.13(105)

A250
A250C
A250J
A250P
A250U
500
4.38(111)
5.25(133)
4.63(118)
A500
A500C
A500J
A500P
A500U
750
5.31(135)
6.38(162)
4.63(118)
A750
A750C
A750J
A750P
A750U
1000
5.31(135)
6.38(162)
5.50(140)
A1000
A1000C
A1000J
A1000P
A1000U
1500
5.31(135)
6.38(162)
7.13(181)
A1500
A1500C
A1500J
A1500P
A1500U
2000
6.25(159)
7.50(191)
7.13(181)
A2000
A2000C
A2000J
A2000P
A2000U
3000
6.25(159)
7.50(191)
8.50(216)
A3000
A3000C
A3000J
A3000P
A3000U
5000
7.50(191)
9.00(229)
8.50(216)
A5000
A5000C
A5000J
A5000P
A5000U
7500
7.50(191)
9.00(229)
11.75(298)
A7500
A7500C
A7500J
A7500P
A7500U
10000
10.50(267)
12.00(305)
11.00(279)
A10000
A10000C
A10000J
A10000P
A10000U
