  POWER SUPPLIES :

Power Supplies Closed View

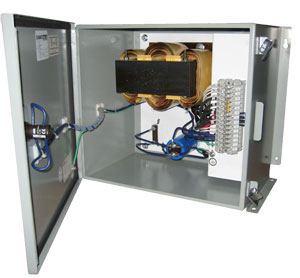

Power Supply Open View

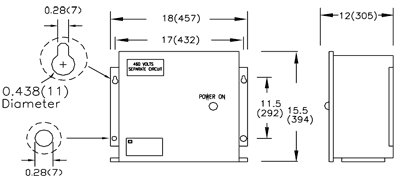

Power Supplies Dimensions Drawing

Enclosure for ALL Power Supplies are the same dimensions shown above
PS-1E SERIES:
• NEMA 12 Oil Tight Power Supply
• 480VAC input/24 VDC Output
• Base or Side Mounting
• POWER-ON Pilot Light Standard

PS-3E SERIES:
• NEMA 12 Oil Tight Power Supply
• 480VAC input/24 VDC Output
• Base or Side Mounting
• POWER-ON Pilot Light Standard

PS-1AE SERIES:
• NEMA 12 Oil Tight Power Supply
• 480VAC input/24 VDC Output
• Base or Side Mounting
• POWER-ON Pilot Light Standard
Power Supply Fig 1
FIG. 1
Power Supply Fig 2
FIG. 2
Power Supply Fig 3
FIG. 3

PS-3AE SERIES:
• NEMA 12 Oil Tight Power Supply
• 480VAC input/24 VDC Output
• Base or Side Mounting
• POWER-ON Pilot Light Standard
  PS-1DAE SERIES:
• NEMA 12 Oil Tight Power Supply
• 480VAC input/24 VDC Output
• Includes THRU-RGE-DOOR Disconnect Switch
• Base or Side Mounting
• POWER-ON Pilot Light Standard
• Primary & Secondary Fusing
  PS-3DAE SERIES:
• NEMA 12 Oil Tight Power Supply
• 480VAC input/24 VDC Output
• Includes THRU-RGE-DOOR Disconnect Switch
• Base or Side Mounting
• POWER-ON Pilot Light Standard
• Primary & Secondary Fusing
Power Supply Fig 4
FIG. 4

Power Supply Fig 5
FIG. 5

Power Supply Fig 1
FIG. 6
P/N
FIG
AC VA
RATING
DC VA
RATING
AC
AMPS
DC
AMPS
F1
F2
F3
PS5-1E
1
-
120
-
5
-
-
-
PS10-1E
1
-
240
-
10
-
-
-

PS10-3E
2
-
240
-
10
-
-
-
PS25-3E
2
-
600
-
25
-
-
-
PS50-3E
2
-
1200
-
50
-
-
-
PS75-3E
2
-
1800
-
75
-
-
-

PS5-1AE
3
600
120
5
5
-
-
-
PS10-1AE
3
1200
240
10
10
-
-
-

PS10-3AE
4
1200
240
10
10
-
-
-
PS25-3AE
4
1200
600
10
25
-
-
-
PS50-3AE
4
1200
1200
10
50
-
-
-
PS75-3AE
4
1200
1800
10
75
-
-
-

PS5-1DAE
5
600
120
5
5
4A
5A
5A
PS10-1DAE
5
600
240
5
10
5A
5A
10A
PS15-1DAE
5
1200
360
10
15
7A
10A
15A

PS10-3DAE
6
1200
240
10
10
7A
10A
10A
PS25-3DAE
6
1200
600
10
25
8A
10A
25A
PS50-3DAE
6
1200
1200
10
50
10A
10A
50A
PS75-3DAE
6
1200
1800
10
75
15A
10A
75A
UL Listed
