  STD SERIES:

STD Series - Printable View
Reference Page
Back to Disconnects

Special Disconnect

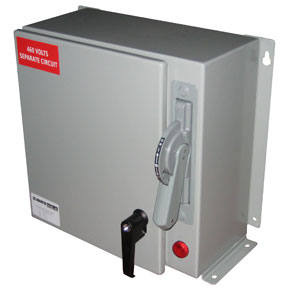

STD Image

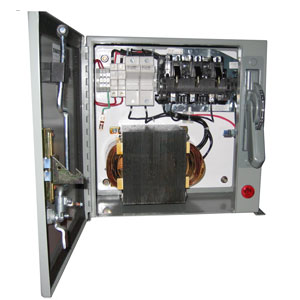

STD Door Open
DETAILS:

• NEMA 12 Enclosure
• Typically wired to line side of main disconnecting device to provide
   power when main disconnect is in OFF position
• Primary and secondary fuses provided
• Power on pilot light standard
• Frequency either 50/60 Hertz
• Transformer is wound 100% from copper wire
• Standard transformer comes with grounded secondary
• Flange mounted blade type disconnect switch w/ 200kA
   Short Circuit Current Rating (SCCR)
• Finger Safe
• Special voltages available
• All dimensions are in inches(mm)
• UL and C-UL Listed

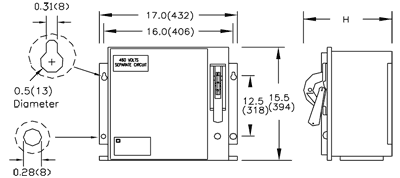

STD Series Drawing

P/N
VA Rating
PRI
VOLTS
SEC
VOLTS
H(mm)
F1
F2
STD1000
1000
480
120
9.50(241)
5A
10A
STD1500
1500
480
120
9.50(241)
7A
15A
STD2000
2000
480
120
9.50(241)
10A
20A
STD3000
3000
480
120
9.50(241)
15A
25A
STD5000
5000
480
120
9.50(241)
25A
40A
STD7500
7500
480
120
11.50(292)
30A
60A
STD10000
10000
480
120
11.50(292)
30A
80A


Schematic
Wiring Diagram
