  OM SERIES: OM Series - Printable View
Reference Page
Back to Disconnects
Transformer Disconnect

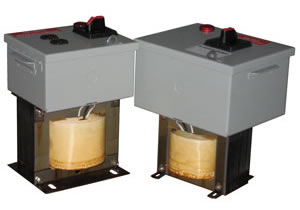

OM Series Transformer Disconnect
DETAILS:

• NEMA 1 Enclosure
• AC powered source for electrical enclosures
• Typically wired to line side of main disconnecting device to provide power    when main disconnect is in OFF position
• Duplex outlet and Power-On pilot light provided
• Primary and secondary fuses provided
• Transformer is shielded
• Standard transformer comes with grounded secondary
• Standard disconnect comes w/ 5kA Short Circuit Current Rating (SCCR) Switch
• 200kA Short Circuit Current Rating (SCCR) Switches Available
• Special Voltages available
• All dimensions are in inches(mm)
• UL and C-UL Listed

AVAILABLE OPTIONS:
SUFFIX

• 200kA Short Circuit Current Rating (SCCR) Switch
• Disconnect w/no Receptacle
• Secondary with Orange Wire
• Secondary with Yellow Wire
• GFCI Receptacle
• Transformer w/Ungrounded Secondary
• Special Voltages
- 200K
- LR
R
Y
- GFCI
- US
Reference Page

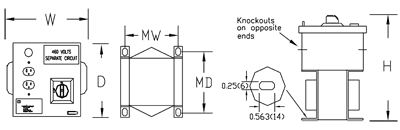

OM Series Drawing

Schematic without Recepticle
Schematic Standard w/Grounded
Secondary with Receptacle


Schematic dwg with Recepticle
Schematic Standard w/Grounded
Secondary without Receptacle


APPROXIMATE DIMENSIONS IN INCHES(MM)

P/N
VA
H
W
D
MW
MD
F1
F2
F3
OM1000
1000
11.25(286)
8.00(203)
6.25(159)
5.38(137)
3.63(92)
5A
2A
8A
OM1500
1500
11.25(286)
8.00(203)
6.25(159)
5.38(137)
4.00(102)
7A
5A
8A
OM2000
2000
11.25(286)
8.00(203)
6.25(159)
5.38(137)
4.75(121)
10A
10A
8A
OM3000
3000
12.13(308)
8.00(203)
6.25(159)
6.81(173)
3.25(83)
15A
10A
15A

OM1000-LR
1000
11.25(286)
8.00(203)
6.25(159)
5.38(137)
3.63(92)
5A
8A
-
OM1500-LR
1500
11.25(286)
8.00(203)
6.25(159)
5.38(137)
4.00(102)
7A
12A
-
OM2000-LR
2000
11.25(286)
8.00(203)
6.25(159)
5.38(137)
4.75(121)
10A
15A
-
OM3000-LR
3000
12.13(308)
8.00(203)
6.25(159)
6.81(173)
3.25(83)
15A
25A
-
OM1000-200K
1000
12.25(311)
9.50(241)
7.25(184)
5.38(137)
3.63(92)
5A
2A
8A
OM1500-200K
1500
12.25(311)
9.50(241)
7.25(184)
5.38(137)
4.00(102)
7A
5A
8A
OM2000-200K
2000
12.25(311)
9.50(241)
7.25(184)
5.38(137)
4.75(121)
10A
10A
8A
OM3000-200K
3000
13.38(340)
9.50(241)
7.25(184)
6.81(173)
3.25(83)
15A
10A
15A
OM1000-LR-200K
1000
12.25(311)
9.50(241)
7.25(184)
5.38(137)
3.63(92)
5A
8A
-
OM1500-LR-200K
1500
12.25(311)
9.50(241)
7.25(184)
5.38(137)
4.00(102)
7A
12A
-
OM2000-LR-200K
2000
12.25(311)
9.50(241)
7.25(184)
5.38(137)
4.75(121)
10A
15A
-
OM3000-LR-200K
3000
13.38(340)
9.50(241)
7.25(184)
6.81(173)
3.25(83)
15A
25A
-
