Dual Transformer Disconnect

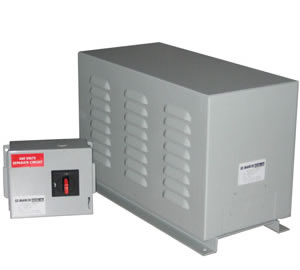

MOD Dual Transformer
DETAILS:

• NEMA 12 Disconnect and NEMA 1 Transformer Enclosure
• Two separate sources for electrical enclosures
• Typically wired to line side of main disconnecting device to provide    power when main disconnect is in OFF position
• Power-On pilot light provided
• Primary and secondary fuses provided
• Standard Disconnect comes w/ 5kA SCCR Switch
• Standard Transformer comes with grounded secondary
• Modular design allows two transformers in one enclosure to be mounted outside control panel while disconnect box may be mounted outside or on backplate of control panel
• Special Voltages Available
• All dimensions are in inches(mm)
• UL and C-UL Listed



MOD Series Disconnect

Disconnect Module
Transformer Module

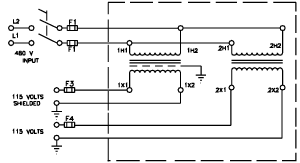

MOD Series Schematic

Wiring Schematic

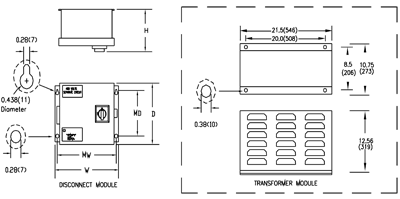

APPROXIMATE DIMENSIONS IN INCHES(MM)
DISCONNECT MODULE

P/N
SHIELDED
TRANSFORMER
VA
STANDARD
TRANSFORMER
VA
H
W
D
MW
MD
F1
F2
F3
MOD1000-1000
1000
1000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
10A
8A
8A
MOD1000-2000
1000
2000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
15A
8A
15A
MOD1000-3000
1000
3000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
20A
8A
25A
MOD2000-1000
2000
1000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
15A
15A
8A
MOD2000-2000
2000
2000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
20A
15A
15A
MOD2000-3000
2000
3000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
25A
15A
25A
MOD3000-1000
3000
1000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
20A
25A
8A
MOD3000-2000
3000
2000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
25A
25A
15A
MOD3000-3000
3000
3000
5.63(143)
8.75(222)
6.25(159)
8.13(207)
4.50(114)
30A
25A
25A
MOD1000-1000-200K
1000
1000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
5A
8A
8A
MOD1000-2000-200K
1000
2000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
7A
12A
15A
MOD1000-3000-200K
1000
3000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
10A
15A
25A
MOD2000-1000-200K
2000
1000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
15A
25A
8A
MOD2000-2000-200K
2000
2000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
25A
40A
15A
MOD3000-3000-200K
2000
3000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
40A
60A
25A
MOD3000-1000-200K
3000
1000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
50A
80A
8A
MOD3000-2000-200K
3000
2000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
25A
25A
15A
MOD3000-3000-200K
3000
3000
8.00(203)
10.25(260)
8.00(203)
9.25(235)
6.00(152)
30A
25A
25A
