Mini Transformer Disconnect

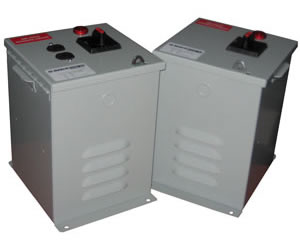

MN Series Image

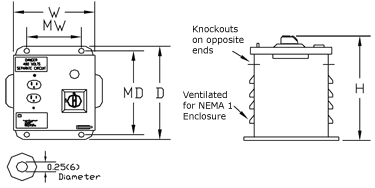

MN Series Drawing

DETAILS:

• NEMA 1 Enclosure
• AC powered source for electrical enclosures
• Typically wired to line side of main disconnecting device to provide
   power when main disconnect is in OFF position
• Duplex outlet and Power-On pilot light provided
• Primary and secondary fuses provided
• Transformer is shielded
• Standard transformer comes with grounded secondary
• Standard disconnect comes w/5kA Short Circuit Current Rating (SCCR) Switch
• 65kA and 200kA Short Circuit Current Rating (SCCR) Switches Available
• Special voltages available
• All dimensions are in inches(mm)
• UL and C-UL Listed


AVAILABLE OPTIONS: SUFFIX

• 200kA Short Circuit Current Rating (SCCR) Switch
• 65kA Short Circuit Current Rating (SCCR) Switch
• Circuit Breaker
• Disconnect with no Receptacle
• Disconnect with Orange Wire
• Disconnect with Yellow Wire
• GFCI Receptacle
• Transformer w/Ungrounded Secondary
• Special Voltages
- 200K
- 65K
- CB
- LR
R
Y
- GFCI
- US
Reference Page

Schematic without Recepticle
Schematic Standard w/Grounded
Secondary with Receptacle


Schematic dwg with Recepticle
Schematic Standard w/Grounded
Secondary without Receptacle

P/N
VA
H
W
D
MW
MD
F1
F2
F3
MN250
250
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
1A
1A
2A
MN500
500
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
2A
2A
2A
MN750
750
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
4A
2A
4A
MN1000
1000
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
5A
2A
8A
MN1500
1500
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
7A
5A
8A
MN2000
2000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
10A
10A
8A
MN3000
3000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
15A
10A
15A

MN250-LR
250
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
1A
2A
-
MN500-LR
500
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
2A
4A
-
MN750-LR
750
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
4A
6A
-
MN1000-LR
1000
10.25(260)
7.25(184)
7.50(191)
6.00(152)
6.88(175)
5A
8A
-
MN1500-LR
1500
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
7A
12A
-
MN2000-LR
2000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
10A
15A
-
MN3000-LR
3000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
15A
25A
-

MN250-65K
250
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
1A
1A
2A
MN500-65K
500
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
2A
2A
2A
MN750-65K
750
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
4A
2A
4A
MN1000-65K
1000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
5A
2A
8A
MN1500-65K
1500
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
7A
5A
8A
MN2000-65K
2000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
10A
10A
8A
MN3000-65K
3000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
15A
10A
15A

MN250-LR-65K
250
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
1A
2A
-
MN500-LR-65K
500
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
2A
4A
-
MN750-LR-65K
750
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
4A
6A
-
MN1000-LR-65K
1000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
5A
8A
-
MN1500-LR-65K
1500
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
7A
12A
-
MN2000-LR-65K
2000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
10A
15A
-
MN3000-LR-65K
3000
11.63(295)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
15A
25A
-

MN250-200K
250
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
1A
1A
2A
MN500-200K
500
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
2A
2A
2A
MN750-200K
750
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
4A
2A
4A
MN1000-200K
1000
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
5A
2A
8A
MN1500-200K
1500
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
7A
5A
8A
MN2000-200K
2000
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
10A
10A
8A
MN3000-200K
3000
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
15A
10A
15A

MN250-LR-200K
250
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
1A
2A
-
MN500-LR-200K
500
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
2A
4A
-
MN750-LR-200K
750
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
4A
6A
-
MN1000-LR-200K
1000
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
5A
8A
-
MN1500-LR-200K
1500
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
7A
12A
-
MN2000-LR-200K
2000
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
10A
15A
-
MN3000-LR-200K
3000
13.13(334)
8.50(216)
10.50(267)
7.13(181)
9.75(248)
15A
25A
-
