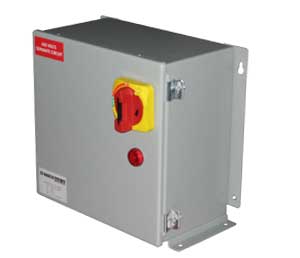

NEMA 12 Disconnect

HC Series Disconnect
DETAILS:

� NEMA 12 Enclosure
� AC powered source for electrical enclosures
� Typically wired to line side of main disconnecting device to provide power    when main disconnect is in OFF position
� Primary and secondary fuses provided
� Standard transformer comes with grounded secondary
� Disconnect comes with 100kA Short Circuit Current Rating (SCCR) Switch
� All dimensions are in inches(mm)
� UL and C-UL Listed

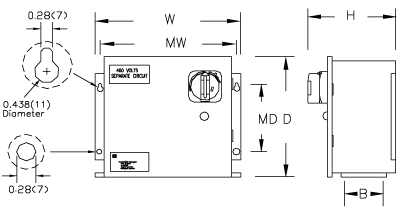

HC Series Drawing

Schematic without Recepticle
Standard Schematic

APPROXIMATE DIMENSIONS IN INCHES(MM)

P/N
VA
RATING
PRI
VOLTAGE
H
W
D
MW
MD
B
F1
F2
HC1000
1000
460
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
8A
HC2000
2000
460
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
15A
HC3000
3000
460
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
25A
HC5000
5000
460
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
40A
HC1000C
1000
480/575
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
5A
8A
HC2000C
2000
480/575
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
10A
15A
HC3000C
3000
480/575
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
15A
25A
HC5000C
5000
480/575
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
25A
40A
HC1000K
1000
575
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
4A
8A
HC2000K
2000
575
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
8A
15A
HC3000K
3000
575
9.00(229)
14.00(356)
12.50(318)
13.00(330)
9.50(241)
4.63(117)
12A
25A
HC5000K
5000
575
12.38(314)
18.00(457)
15.00(381)
17.00(432)
11.50(292)
7.50(191)
20A
40A
