  DD SERIES: DD Series - Printable View
Part Number Explanation
 Back to Disconnects

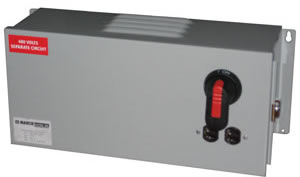

Special Transformer Disconnect

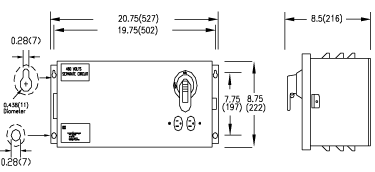

MN Series Drawing
DETAILS:

• NEMA 1 Enclosure
• Two separate power sources for electrical enclosures in one unit
• Typically wired to line side of main disconnecting device to provide power
   when main disconnect is in OFF position
• Duplex outlet provided
• Primary and secondary fuses provided
• One Transformer is shielded
• Standard transformer comes with grounded secondary
• Standard disconnect comes w/ 5kA Short Circuit Current Rating (SCCR) Switch
• 65kA and 200kA SCCR Available
• Special voltages available
• All dimensions are in inches(mm)
• UL and C-UL listed


  • Ideal for control panel lighting and other auxiliary power applications
• One shielded and optional filtered source for PC protection and another auxiliary source for utilities

P/N
Shielded
VA Rating
Utility
VA Rating
Filter
Protected
F1
F2
F3
F4
DD500-500
500
500
-
5A
2A
4A
4A
DD500-1000
500
1000
-
7A
8A
2A
4A
DD750-500
750
500
-
6A
2A
2A
8A
DD1000-500
1000
500
-
7A
2A
2A
8A
DD1000-1000
1000
1000
-
10A
8A
2A
8A
DD1500-500
1500
500
-
10A
2A
2A
12A
DD1500-1000
1500
1000
-
12A
2A
2A
6A

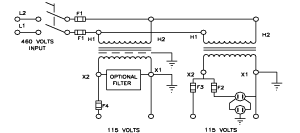

DD Wiring Diagram
Wiring Diagram
