  CV SERIES: CV Series - Printable View
Part Number Explanation
Back to Disconnects
Special Disconnect



CV Drawing
DETAILS:

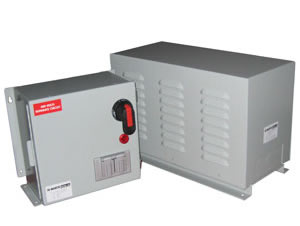

• NEMA 12 Disconnect and NEMA 1 Transformer Enclosure
• Two separate sources for electrical enclosures
• Typically wired to line side of main disconnecting device to provide power
   when main disconnect is in OFF position
• Transformer comes with grounded secondary
• Primary and secondary fuses provided
• Duplex outlet and Power-On pilot light standard
• Modular design allows two transformers in one enclosure to be mounted
   outside control panel while disconnect box may
• Standard Disconnect comes w/5kA Short Circuit Current Rating (SCCR) Switch
• Special Voltages Available
• All dimensions are in inches(mm)
• UL and C-UL Listed

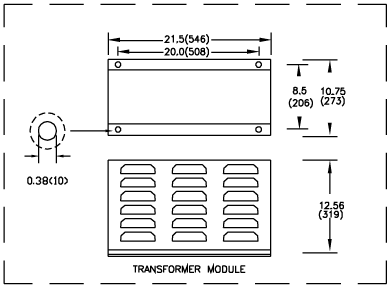

CV Drawing

P/N
CONSTANT
VOLTAGE
VA
F1
CB1
CB2
CB3
CB4
FIG
CV500-500
500
500
5A
4A
4A
-
-
1
CV500-1000
500
1000
7A
4A
10A
-
-
1
CV500-1500
500
1500
10A
4A
10A
-
-
1
CV500-2000
500
2000
12A
4A
10A
10A
-
2
CV500-3000
500
3000
15A
4A
16A
10A
-
2

CV1000-500
1000
500
7A
10A
4A
-
-
1
CV1000-1000
1000
1000
10A
10A
10A
-
-
1
CV1000-1500
1000
1500
12A
10A
10A
-
-
1
CV1000-2000
1000
2000
15A
10A
10A
10A
-
2
CV1000-3000
1000
3000
20A
10A
16A
10A
-
2

CV2000-500
2000
500
12A
10A
10A
4A
-
2
CV2000-1000
2000
1000
15A
10A
10A
10A
-
2
CV2000-1500
2000
1500
15A
10A
10A
16A
-
2
CV2000-2000
2000
2000
20A
10A
10A
10A
10A
3
CV2000-3000
2000
3000
25A
10A
10A
16A
10A
3

CV3000-500
3000
500
15A
16A
10A
4A
-
2
CV3000-1000
3000
1000
20A
16A
10A
10A
-
2
CV3000-1500
3000
1500
20A
16A
10A
16A
-
2
CV3000-2000
3000
2000
25A
16A
10A
10A
10A
3
CV3000-3000
3000
3000
30A
16A
10A
16A
10A
3

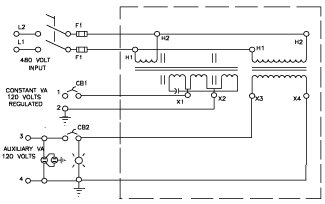

CV 1
FIG 1

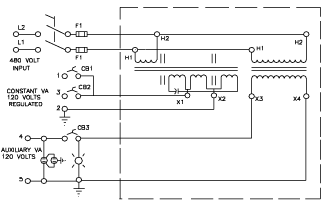

CV 2
FIG 2

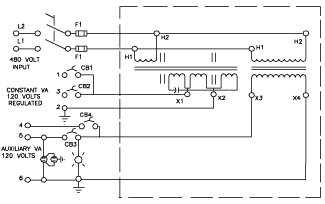

CV 3
FIG 3
